夹紧力kN
扭矩Nm HDLM4 液压压
力MPa		 HDHLM4 HDLM6 液压压
力MPa		 HDHLM6
14 4.6 6.9 3.4 6.8 3.4 3.9
27 9.5 10.3 6.4 11.2 6.9 7.1
41 14.0 13.8 8.5 14.9 10.3 10.4
54 18.0 17.2 11.3 19.2 13.8 13.9
68 22.2 20.7 13.8 25.6 17.2 17.6
81 26.1 24.1 16.5 30.5 20.7 21.1
95 27.6 18.7 33.2 24.1 24.4
31.0 21.4 27.6 28.2
31.0 31.6
液压排量6.8CC 液压排量18CC

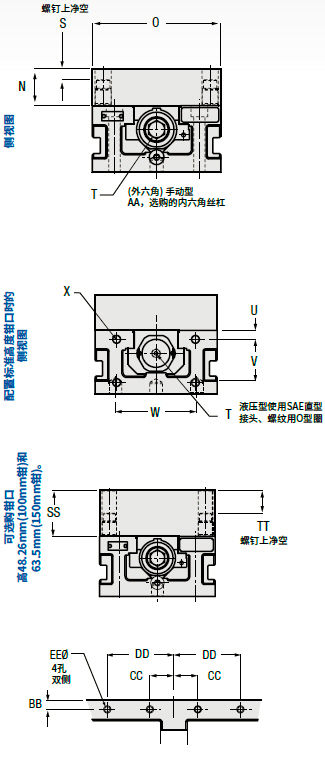

参数表 mm(in)
100mm和150mm HDL型普通和液压钳
HDLM4 HDHLM4 HDLM6 HDHLM6
A 60.325 60.325 79.375 79.375
B 101.600 101.600 152.400 152.400
C 415.925 415.925 533.400 533.400
D 200.025 200.025 258.877 258.877
E 63.500 63.500 82.550 82.550
F 418.287 418.287 539.750 539.750
G 209.144 209.144 269.875 269.875
H 33.680 – 36.830 –
J 9.855 – 21.844 –
K 41.275 41.275 63.500 63.500
L 82.550 82.550 127.000 127.000
M 101.600 101.600 127.000 127.000
N 35.560 35.560 43.891 43.891
O 101.600 101.600 152.400 152.400
P 75.794 75.794 101.600 101.600
Q 65.075 65.075 84.125 84.125
R 20.625 20.625 24.613 24.613
S 7.722 7.722 13.259 13.259
T 14.275
外六角		 (7/16-20
)UNF O型圈口		 19.050
外六角		 (7/16-20)
UNF O型圈口
U 9.525 9.525 11.125 11.125
V 42.875 42.875 53.975 53.975
W 63.500 63.500 98.425 98.425
X M8 x 1.25 M8 x 1.25 M10 x 1.5 M10 x 1.5
Y – 3.175 – 3.175
Z 3.048 – 3.962 –
AA 11.099
内六角		 11.900
内六角		 15.875
内六角		 15.875
内六角
BB 9.525 9.525 11.125 11.125
CC 34.325 34.325 28.575 28.575
DD 65.100 65.100 79.375 79.375
EE M8 x 1.25 M8 x 1.25 M8 x 1.25 M8 x 1.25
FF
GG 20.000 20.000 25.000 25.000
HH 100.000 100.000 75.000 75.000
JJ
KK
LL 100.000 100.000 175.000 175.000
MM – –
NN 40.000 40.000 50.000 50.000
OO M8 SHCS M8 SHCS M12 SHCS M12 SHCS
PP – – – –
QQ – – – –
RR 16.000 16.000 16.000 16.000
SS 48.260 48.260 60.960 60.960
TT 20.422 20.422 30.328 30.328
重量 15.42Kgs 14.96Kgs 32.21Kgs 31.75Kgs
重量仅指钳体，不含钳口部分

HD和HDL的钳口及基础板选项请见第40至43页
