参数表 mm(in)
标准型 反向型 液压型 液压反向省 气动型气 动反向型
XL6 XL6R XL6H XL6HR XL6A XL6AR
A 79.38 79.38 79.38 79.38 79.38 79.38
B 152.4 152.4 152.4 152.4 152.4 152.4
C 568.96 568.96 568.96 568.96 568.96 568.96
D 5.29 5.29 5.29 5.29 5.29 5.29
E 17.48 17.48 17.48 17.48 17.48 17.48
F 37.72 37.72 37.72 37.72 37.72 37.72
G 114.3 114.3 114.3 114.3 114.3 114.3
H 44.07 44.07 44.07 44.07 44.07 44.07
J 18.42 18.42 18.42 18.42 18.42 18.42
K 101.6 101.6 101.6 101.6 101.6 101.6
L 525.27 525.27 525.27 525.27 525.27 525.27
M 23.88 23.88 23.88 23.88 23.88 23.88
N 98.43 98.43 98.43 98.43 98.43 98.43
O (1/2-13) (1/2-13) (1/2-13) (1/2-13) (1/2-13) (1/2-13)
P 139.70 139.70 139.70 139.70 139.70 139.70
Q 139.70 139.70 139.70 139.70 139.70 139.70
R 127.00 127.00 127.00 127.00 127.00 127.00
S 30.18 30.18 30.18 30.18 30.18 30.18
T 100.00 100.00 100.00 100.00 100.00 100.00
U 127.00 127.00 127.00 127.00 127.00 127.00
V 15.88 15.88 15.88 15.88 15.88 15.88
W 16.00 16.00 16.00 16.00 16.00 16.00
X 11.13 11.13 11.13 11.13 11.13 11.13
Y 38.10 38.10 38.10 38.10 38.10 38.10
Z 19.05 19.05 19.05 15.88 19.05 15.88

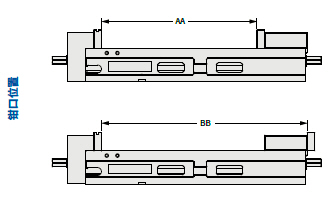

AA 368.30 368.30 368.30 368.30 368.30 368.30
BB 488.95 488.95 488.95 488.95 488.95 488.95
CC 17.53 17.53 17.53 17.53 17.53 17.53
DD 37.34 37.34 37.34 37.34 37.34 37.34
EE 16.00 16.00 16.00 16.00 16.00 16.00
FF 21.59 21.59 21.59 21.59 21.59 21.59
GG 20.32 20.32 20.32 20.32 20.32 20.32
HH 9.14 9.14 9.14 9.14 9.14 9.14
JJ 16.00 16.00 16.00 16.00 16.00 16.00
KK 31.75 31.75 31.75 31.75 31.75 31.75
LL - - 63.50 63.50 - -
MM - - 85.85 85.85 - -
NN - - - - 182.88 182.88
PP - - - - 25.40 25.40
QQ - - - - 127.00 127.00
RR - - - - 88.90 88.90
SS 13.49 13.49 13.49 13.49 13.49 13.49
TT 101.60 101.60 101.60 101.60 101.60 101.60
重量kg 45.4 45.4 47.6 47.6 48.1 48.1
液压排量CC - - 11.3 11.3 - -
夹紧力kN
手动扭矩Nm 标准型
XL6 XL6R
13.6 3.5 3.5
27.1 8.0 8.0
40.7 11.2 11.2
54.2 15.2 15.2
67.8 18.7 18.7
81.4 22.3 22.3
94.9 28.0 28.0
108.5 30.6 30.6

夹紧力kN
液压MPa 液压型
XL6H XL6HR
2.8 4.0 4.0
5.5 6.8 6.8
8.3 12.2 12.2
11.0 16.2 16.2
13.8 20.5 20.5
16.6 24.5 24.5
19.3 28.6 28.6
22.1 32.7 32.7
注：夹紧力仅供参考

夹紧力kN
气压Bar 气动型
XL6A XL6AR
0.7 1.4 1.4
1.4 3.7 3.7
2.1 5.7 5.7
2.8 7.9 7.9
3.5 9.8 9.8
4.1 12.1 12.1
4.8 14.4 14.4
5.5 16.9 16.9
6.2 19.5 19.5
6.9 22.2 22.2
